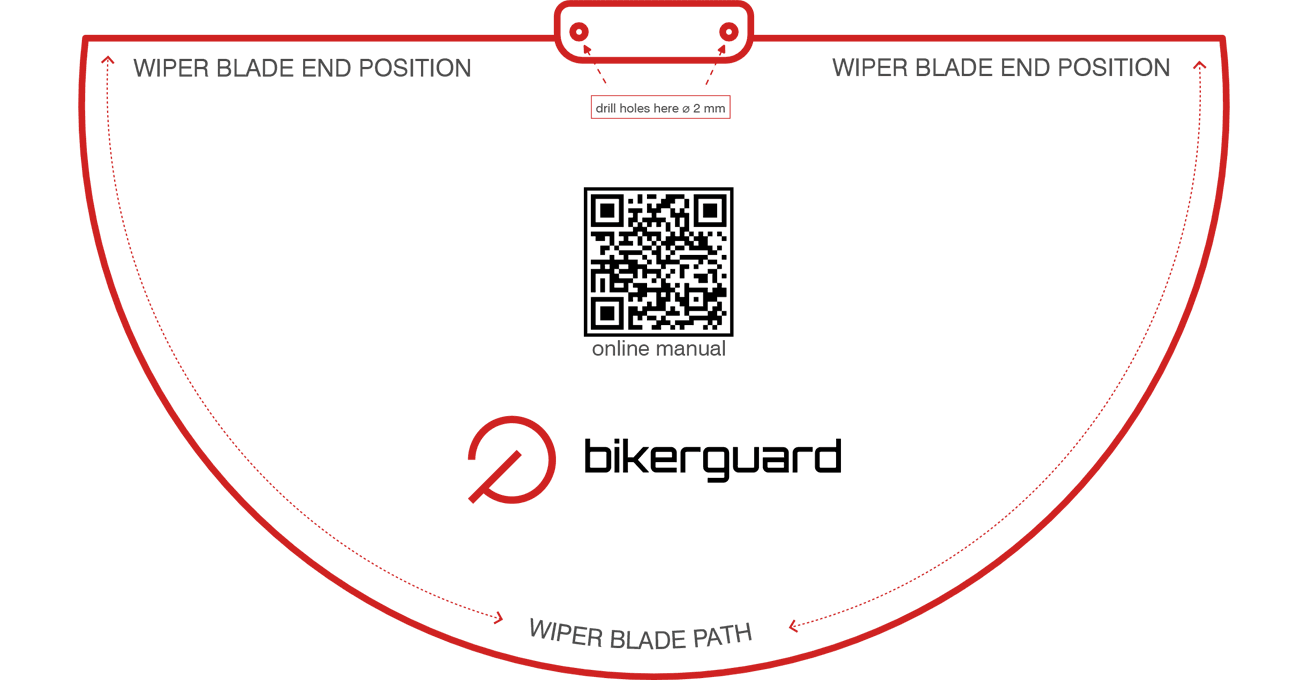

Assembly Template
Not sure if BIKERGUARD fits your helmet? Download our free printable template and check in seconds.
- Print the PDF template at actual size (M1:1) - do not scale
- Cut out the template shape

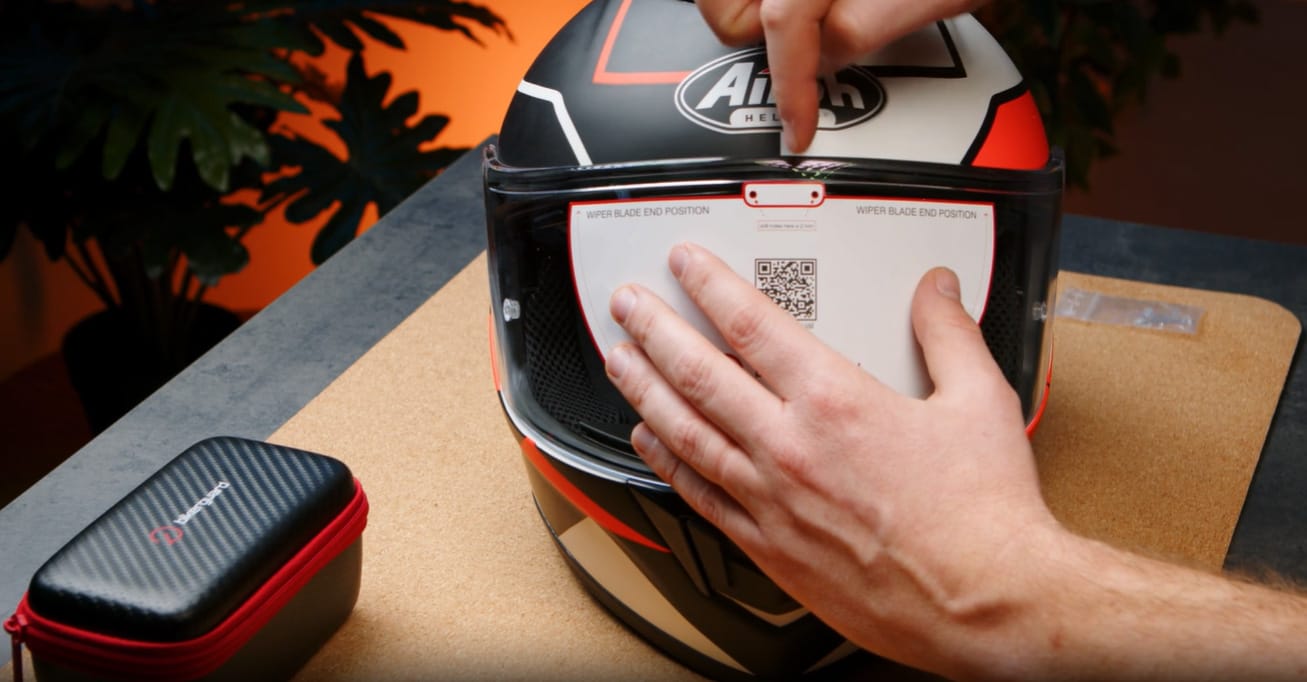

- Place it on your visor and check the wiper blade trajectory
Requirements and Limitations
| Requirement | Details |
|---|---|
| Minimum visor height | At least 110 mm of clear surface |
| Wiper movement | 180 degrees - from left to right and back |
| Surface | Must be free of any obstacles |
| Pinlock | Compatible - no problem at all |
| Air intake ports | Not compatible (e.g. Arai) |
| 3D shaped edges | OK if the clear area between edge and lock is at least 110 mm |

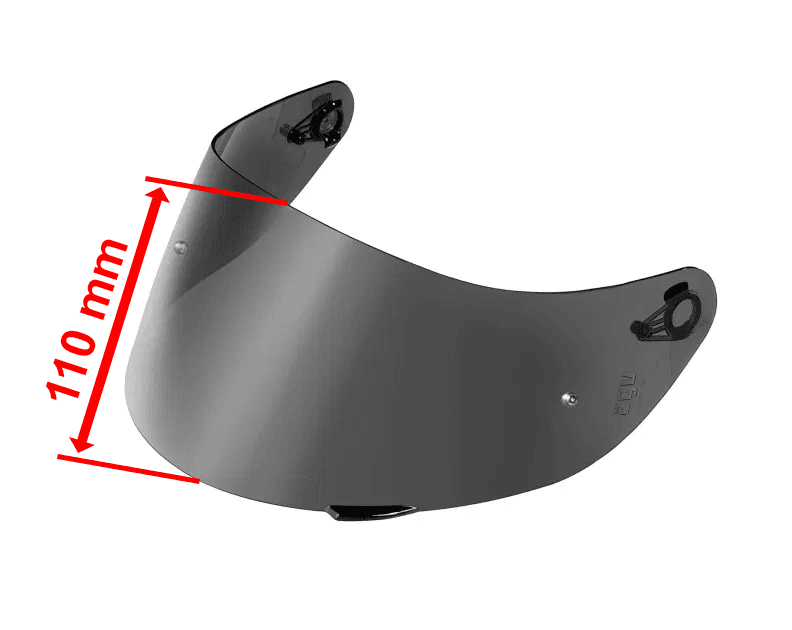

Minimum 110 mm visor height required for the wiper blade

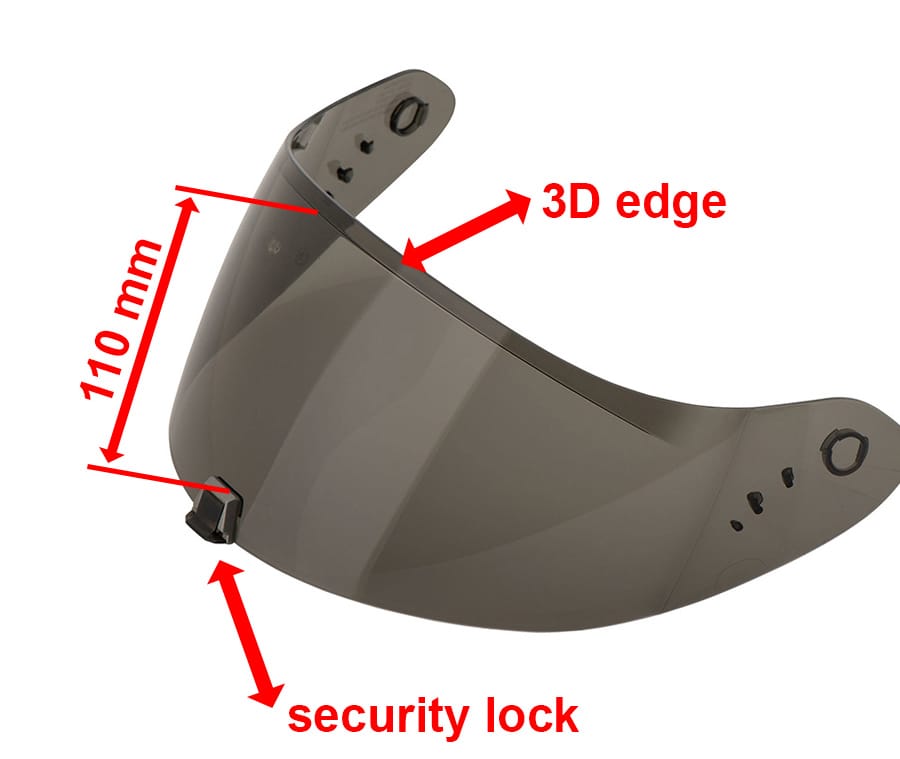

3D edges are OK if 110 mm clear area remains

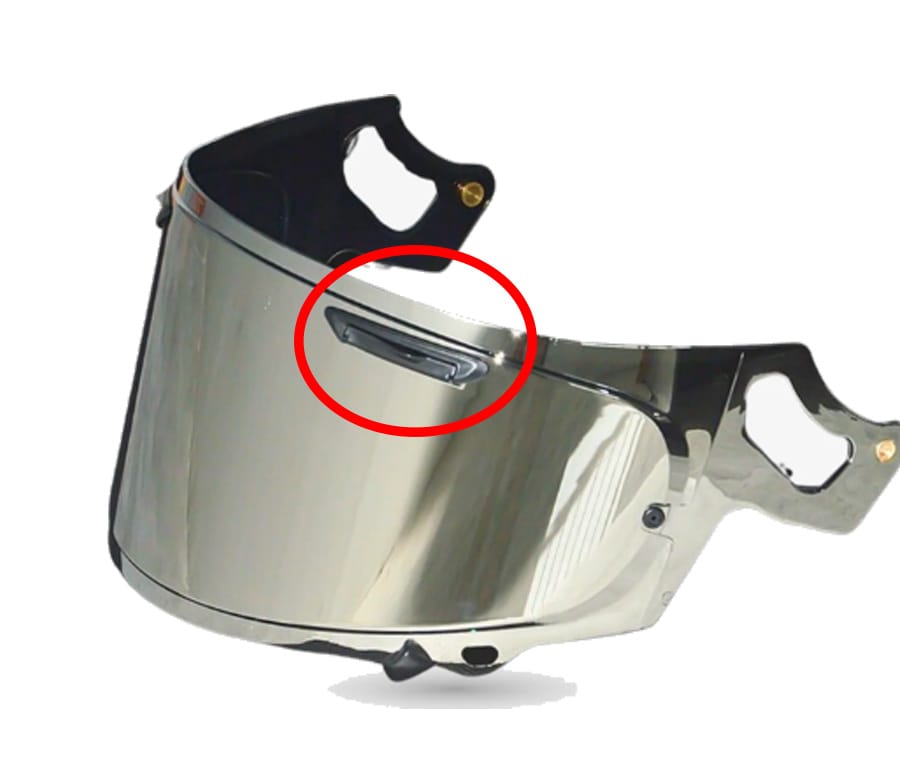

No air intake ports on the visor surface. Pinlock is fine.
Compatible Helmets
BIKERGUARD works with most helmet types:

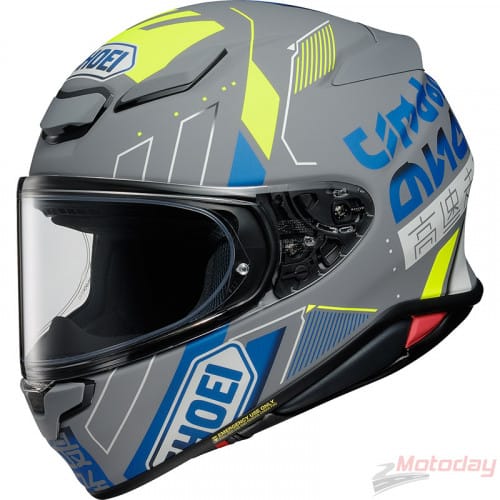

Full Face
✓ 100% COMPATIBLE

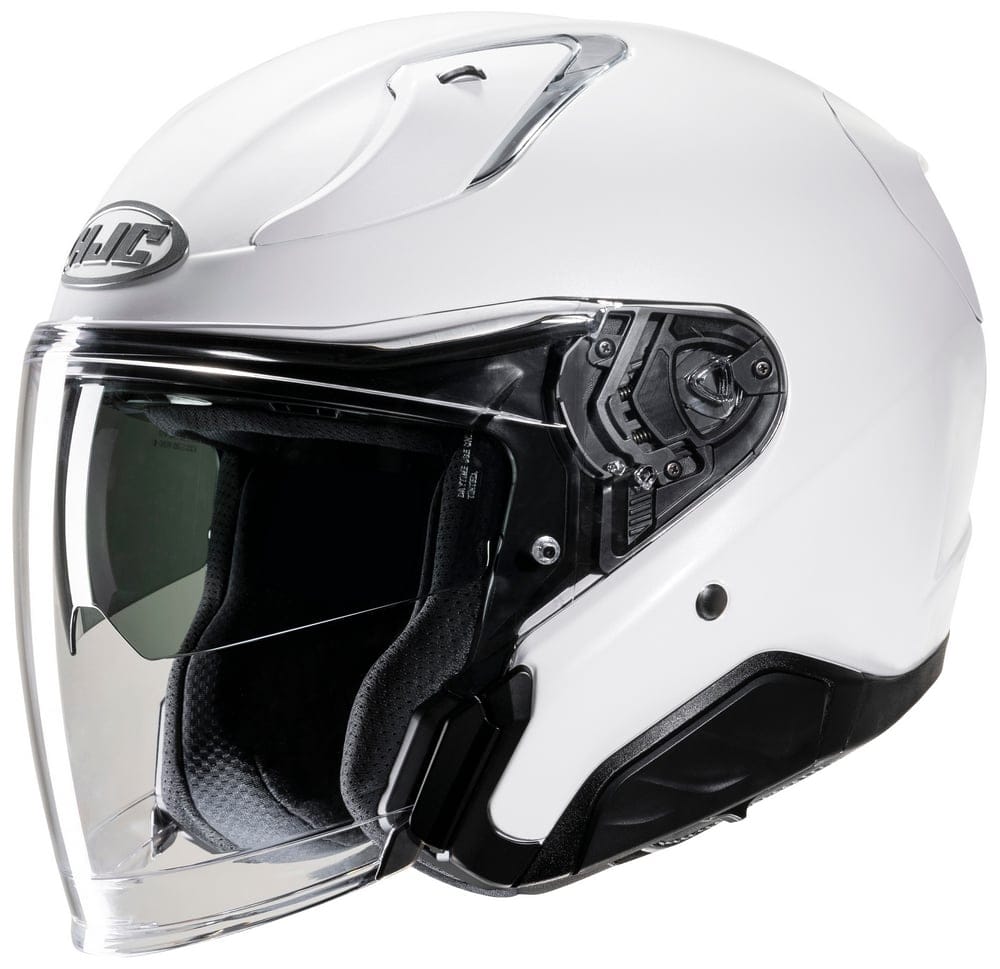

Open Face
✓ 100% COMPATIBLE

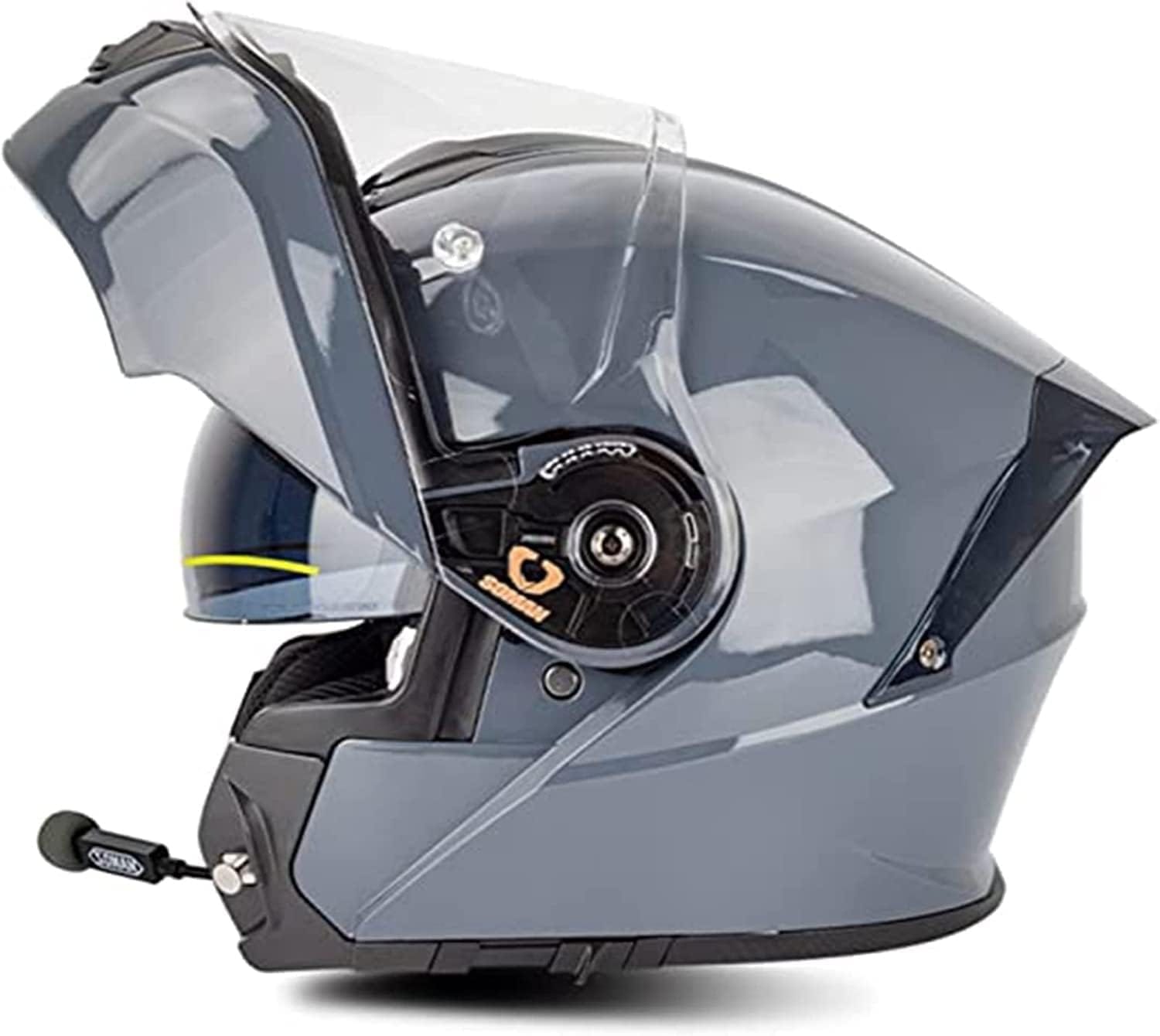

Flip-up / Modular
✓ 100% COMPATIBLE
Not Compatible
Some helmet and visor types are not suitable for BIKERGUARD:

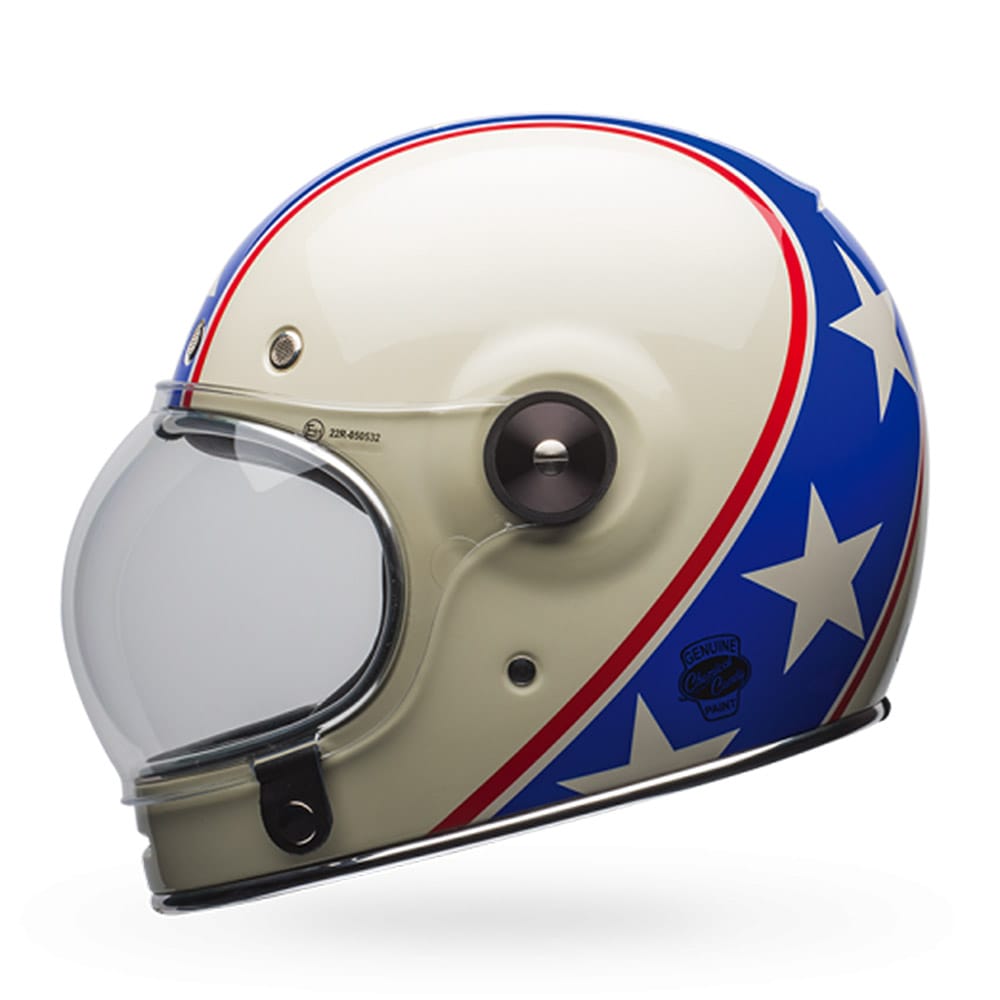

Too Curved Visors
✗ NOT COMPATIBLE

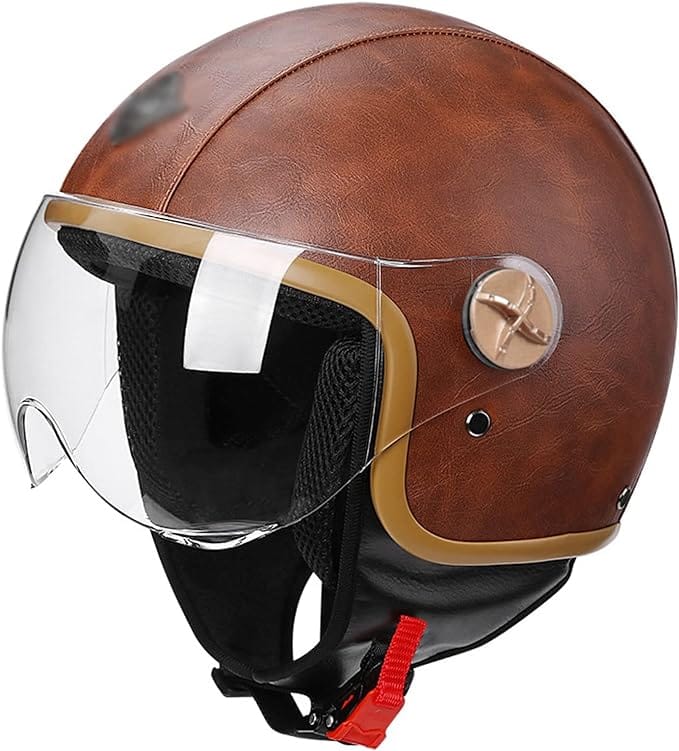

Dirt Bike / Goggles
✗ NOT COMPATIBLE

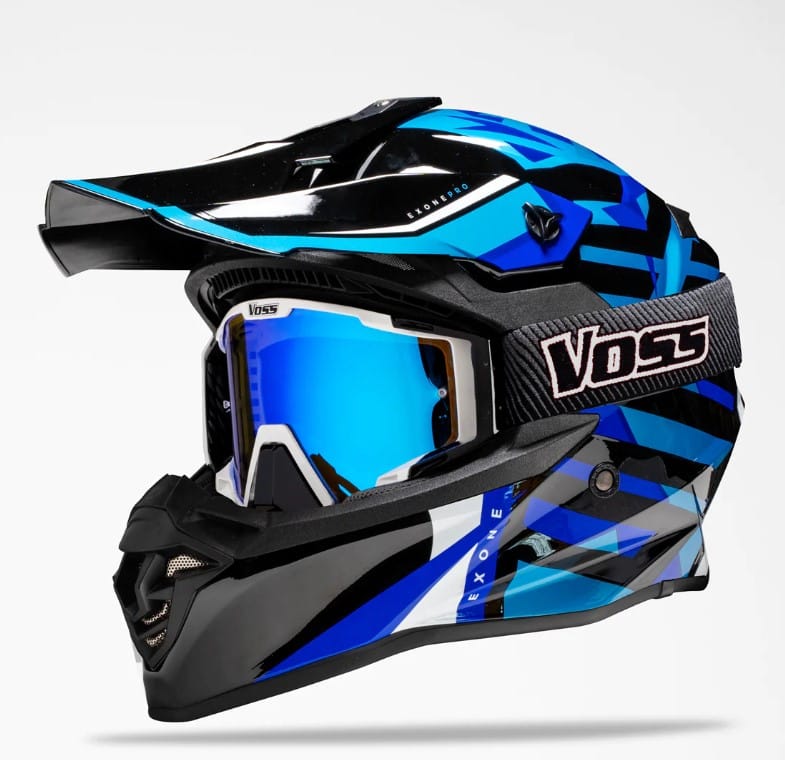

W-Shaped Visors
✗ NOT COMPATIBLE
Not sure? Download the template above and test it on your helmet, or contact us - we are happy to help!
